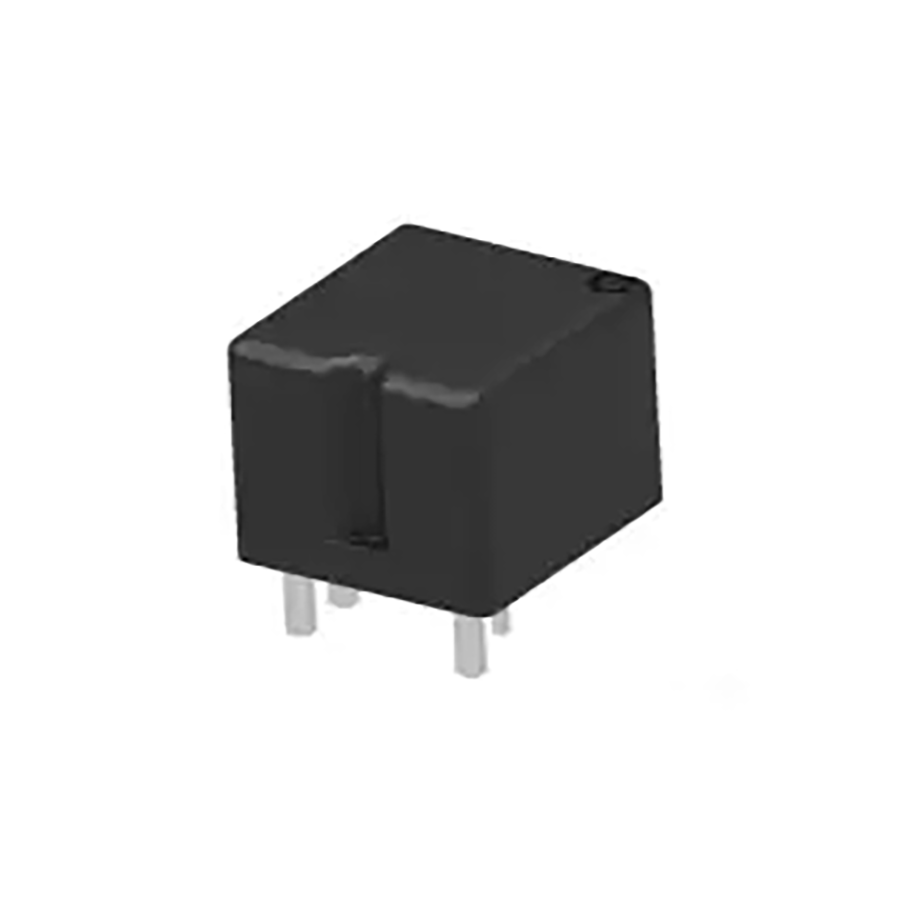

V23086-C1001-A403
Manufacturer:
TE Connectivity
Mfr.Part #:
V23086-C1001-A403
Datasheet:
Description:
Relays Coil Current:47.2 mA Contact Current Rating:30 A Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 12.9 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 9.9 mm |
| Packaging | Tube |
| RoHS | Compliant |
| Current Rating | 30 A |
| Coil Voltage (DC) | 12 V |
| Coil Current | 47.2 mA |
| Coil Type | Non-Latching |
| Operate Time | 3 ms |
| Release Time | 1.5 ms |
| Contact Current Rating | 30 A |
| Termination Style | PC Pin |
| Switching Voltage | 12 VDC |
| Must Operate Voltage | 6.9 V |
| Must Release Voltage | 1.5 V |
Stock: 1224
Distributors
pcbx
pcbxUnit Price$1.37299
Ext.Price$1.37299
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.37299 | $1.37299 |
| 10 | $1.15181 | $11.51810 |
| 25 | $1.00195 | $25.04875 |
| 50 | $0.87158 | $43.57900 |
